Paper Cup and Container Forming Machine, DESPU-C260/B180
Paper Cup and Container Forming Machine, DESPU-C260/B180
High speed production of paper beverage cups, paper salad bowls and paper ice cream containers
Request a Quote

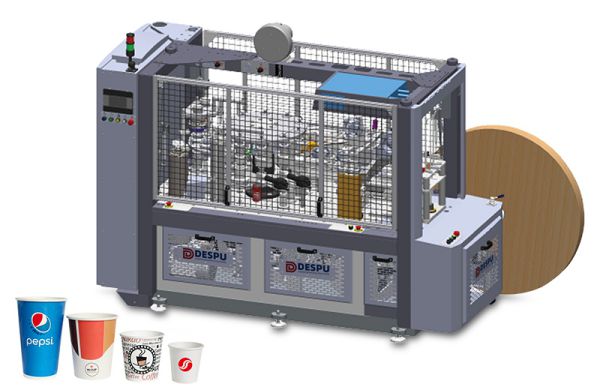

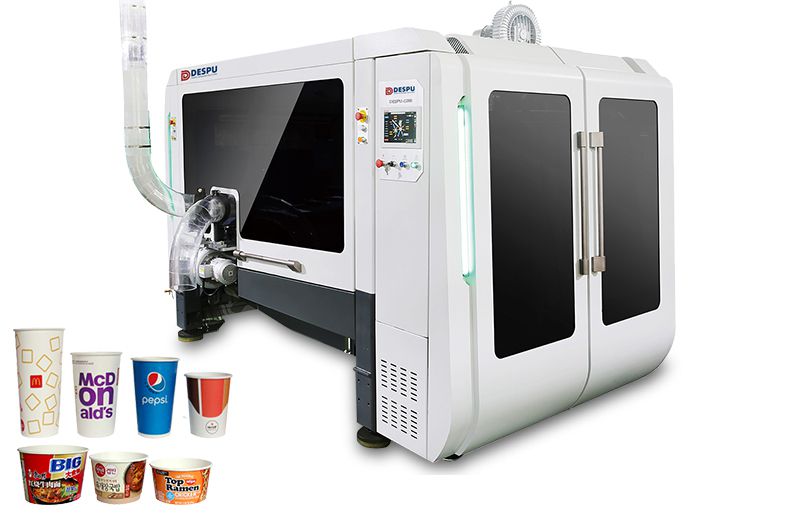

DESPU-C260/B180 is DESPU’s pride in paper beverage cups, paper bowls and other paper cup and container forming. It has become the most advanced high-end ice cream, snacks and pasta container forming machine.
With multiple-station working, DESPU-C260/B180 possesses excellent tall or large paper containers productivity, such as 8-22oz paper cold/hot cups and 11-43oz paper cold/hot paper bowls. It even allows a maximum output of 260 paper cups per minute.
Request a Quote
Production Efficiency
Output in every shift (8 hours) achieves 96,000 cups, and monthly output ( in 3 shifts) arrives 7.70 million cups.
Qualified rate is higher than 99% in normal production.
Machines can be processed simultaneously by single operator.
Quality Control
5-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
Easy inspection and maintenance for parts on forming table.
All parts under forming table should be lubricated every four to six month with specified oil.

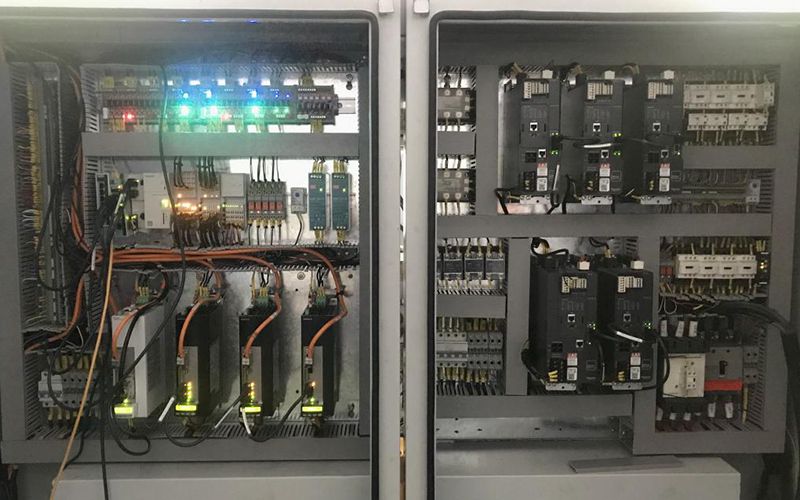

France Schneider and Rexroth electrical parts. PLC control system & touch screen with sensors. Paper feeding with servo to reduce waste. Any breakdown occurs, it will auto-stop and show on screen for easy checking. With electronic cam, paper suction rod’s position can be adjusted on screen. Compared with other factories’ manual temperature control system with spin button, PID temperature control system, which can be set on screen, leads to zero errors.

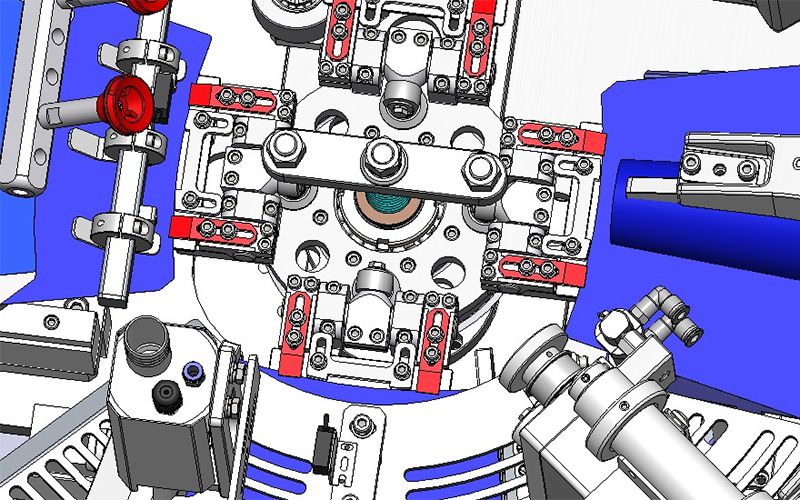

The paper suction process adopts three-degree paper suction + high-speed rotating mechanism + four-minute servo paper feeding, allowing a theoretical design speed of 200-238 pieces/min. In this way, paper suction and paper removal system are more stable than 138S vertical machine. Besides, failure rate caused by poor paper suction is greatly reduced.

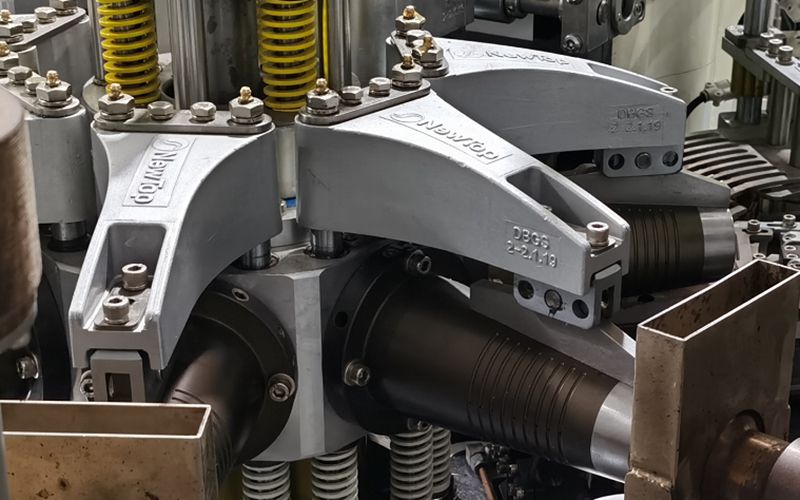

Three side sealing structures: in accordance with paper thickness, three side sealing techniques are optional. After fixing cup body on case mold, cup-top curling and heat forming will be adopted for smooth and thin curling effect, as well as better forming effect.
3300 x 2140 x 2350mm（cup counting shelf: 1230 x 720 x 1900mm）
3300 x 2140 x 2350mm（cup counting shelf: 1230 x 720 x 1900mm）
Note: Optional Configuration ○ Standard Configuration ●
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
