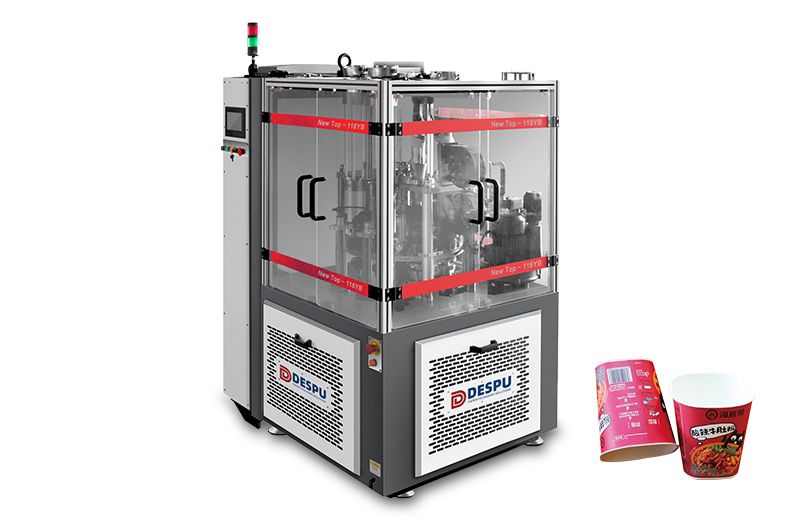

Paper Cup Rim Flattening Machine, DESPU-DY800

Paper Cup Rim Flattening Machine, DESPU-DY800
Request a Quote
Production Efficiency
  • Output in every shift (8 hours) achieves 58,000 cups, and monthly output ( in 3 shifts) arrives 4.05million cups.
  • Qualified rate is higher than 99% in normal production.
  • Machines can be processed simultaneously by single operator.
Quality Control
  • 3-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
  • Easy inspection and maintenance for parts on forming table.
  • All parts under forming table should be lubricated every four to six month with specified oil.
Request a Quote
Mechanical Properties

DESPU-DY800 paper cup rim flattening machine possesses a working table, which well separated driving part and forming part, and placing driving part inside the chassis under the table. Automatic lubrication is applied in gaps. Parts on table top is designed around the index plate in accordance with the forming technique. PLC control, photoelectric tracking for the whole process are applied for the electronical parts. This machine is quite suitable for the rim flattening of paper cups with a diameter of 60-120mm. It allows an output of 80-120pcs every minute.

Specification
Model
DESPU-DY800
Output 80-120 pcs/min
Paper cup size (D1) Φ60-120mm (H) 60-135mm (D2) Φ50-75mm (h) 5-12mm
Power 3-phase 380V，6.5KW
Compressed Air 0.4-0.6MPa，0.2m³/min
Weight 1200kg
Packaging Box Size 1600*1500*2350
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
