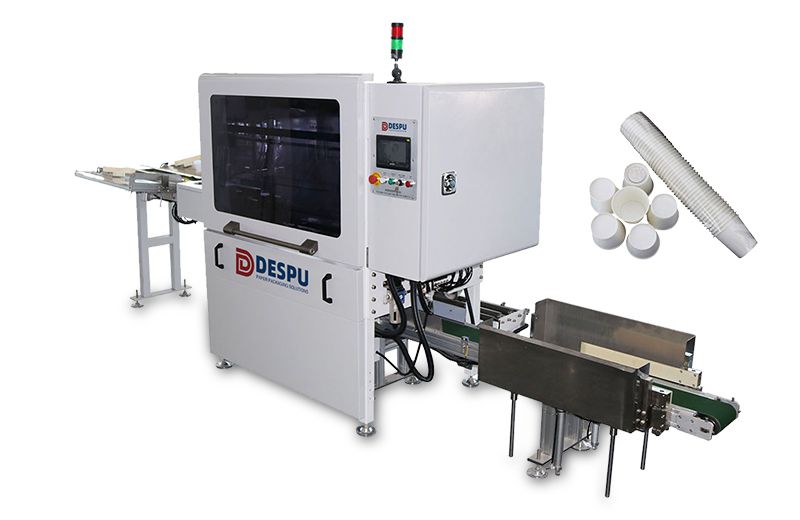

Automatic Paper Cup Packaging Machine, DESPU-DB200

Automatic Paper Cup Packaging Machine, DESPU-DB200
Request a Quote
Production Efficiency
  • Output in every shift (8 hours) achieves 58,000 cups, and monthly output ( in 3 shifts) arrives 4.05 million cups.
  • Qualified rate is higher than 99% in normal production.
  • Machines can be processed simultaneously by single operator.
Quality Control
  • 3-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
  • Easy inspection and maintenance for parts on forming table.
  • All parts under forming table should be lubricated every four to six month with specified oil.
Request a Quote
Mechanical Properties

DESPU-DB200 automatic paper cup packaging machine enjoys multiple functions, such as automatic film feeding, vent hole punching, color mark positioning, single-row and double-row packaging. It allows the connection with multiple (no more than 4) paper cup forming machines, thus to develop fully automatic production line. Moreover, film’s length can be automatically adjusted in accordance with the cup top diameter. It enables automatic classification after packaging and jetting production date and batch number with ink-jet printing machine. It is the best option to decrease the load of workers.

Specification
Model
DESPU-DXD110
DESPU-DXD150
DESPU-DXD200
Weight 700kg 700kg 700kg
Packaging Box Size 1800x1700x2000mm 1800x1700x2000mm 1800x1700x2000mm
Power 3-phase 200V，5KW 3-phase 200V，5KW 3-phase 200V，5KW
Compressed Air 0.4MPa,0.5m³/min 0.4MPa0.5m³/min 0.4MPa,0.5m³/min
Packaging Capacity Double-row:15 bags/min
Four-row:12 bags/min		 Double-row:15 bags/min
Four-row:12 bags/min		 Double-row:12 bags/min
Four-row:10 bags/min
Packaging Film HDPE.LDPE HDPE.LDPE HDPE.LDPE
Packaging Thickness 15μm-50 μm 15μm-50 μm 15μm-50 μm
Packaging Length 250-650mm 250-650mm 250-500mm
Packaging Diameter Ф60-110mm Ф95-150mm ф150-200mm
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
