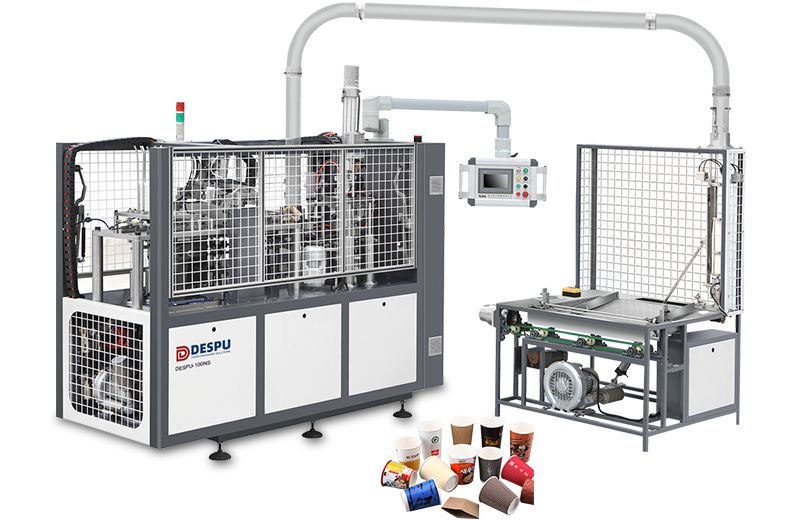

Suitable for making 6-16oz paper cups, 80-120 cups/min
Request a Quote
Advantages
The whole steel plate machine body, sandwich paper feeding and automatic lubrication system ensure long-term stable operation of the machine;
Double short-distance vertical shafts and advanced and high-precision open type cylinder cam driving help to achieve the high output and zero failure of this machine.
Single grooved cam mechanism and seesaw-type ejection rod allow the high speed and accuracy of paper feeding.
Specially designed￠490mm mold turning design lightens the work load and improves the working efficiency;
Scientific and reasonable mechanism and excellent process design, together with mold changing, enables the production of paper cups with a capacity of 6oz-16oz ;
Request a Quote
Maintenance
Machine’s parts are mostly fixed on the working table, enabling easy adjustment and changing;
Small sized machine takes up less areas, greatly saving the client's factory space.
Machine details

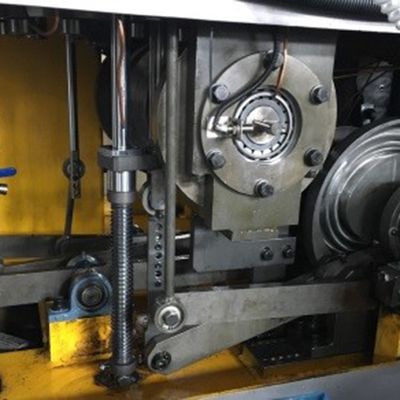

Open cam driving system and unique hanging cam design for less pollution.
Automatic lubrication system highly saves your labor cost and easier your daily work.

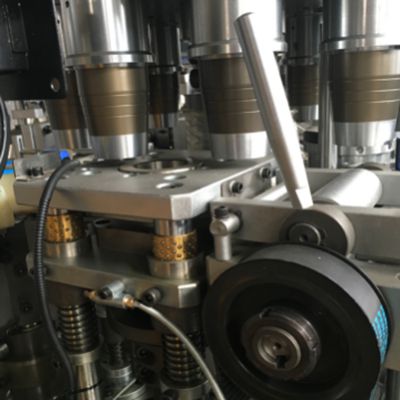

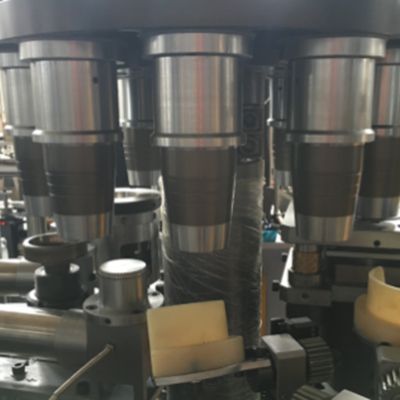

Aluminum mold, longer using life with less abrasion.

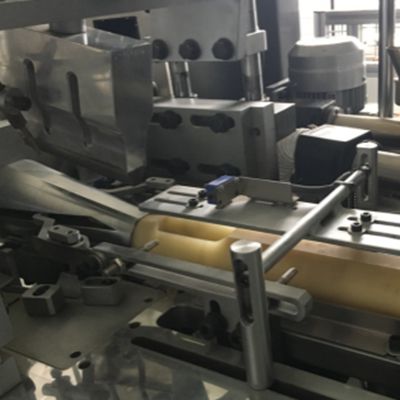

Ultrasonic unit guarantees fast and quality sealing.

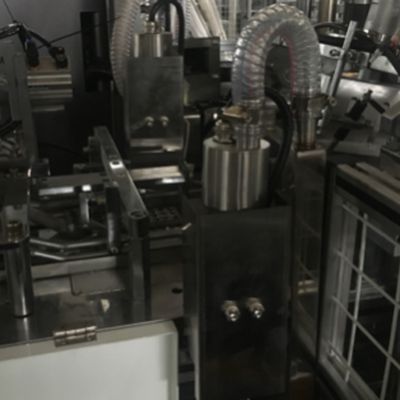

Two pre-heating heaters guarantee the fully heating of paper fans, making sure the stable output of double-coated PE paper cups.

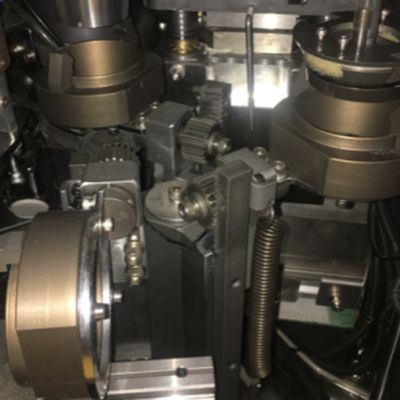

Unique robot-hand design makes sure the stability of cup shape.

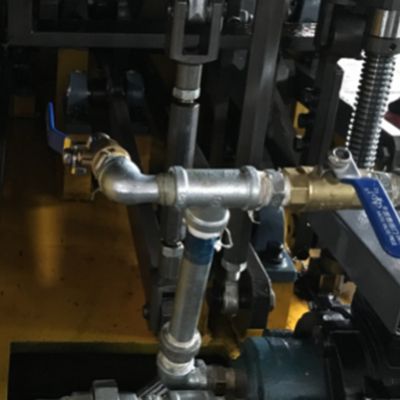

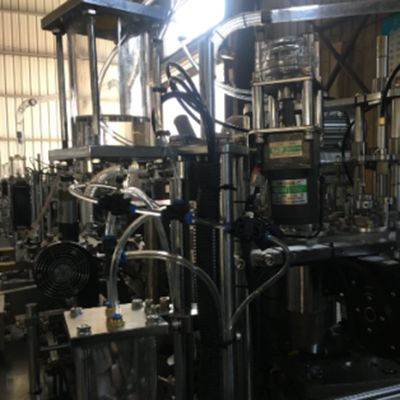

Silicon oil circulation and lubrication system with motor, highly saves the oil cost and ensures the machine and cups’ cleanness.
Bottom paper feeding uses servo motor.

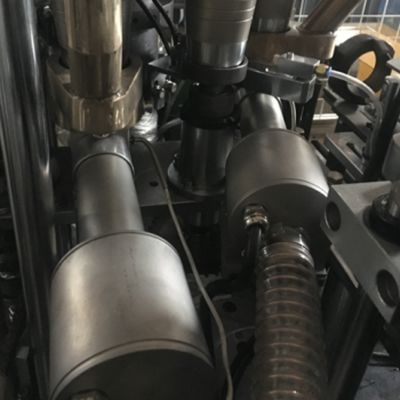

Using two heaters to heat up the bottom ensures the bottom sealing effect and guarantees high speed production.

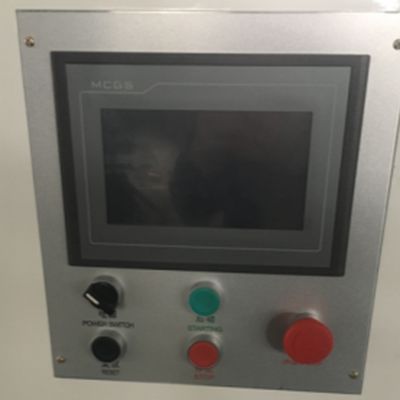

PLC control system

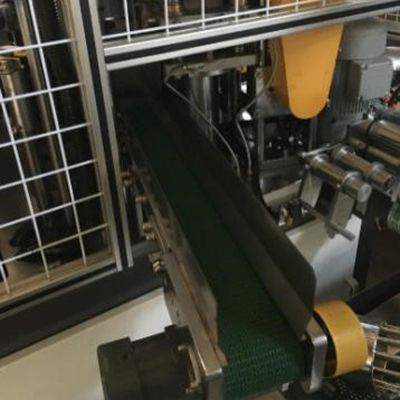

Transmission belt for bottom waste paper output.
Air cylinder for paper organization.
Specification
Model
DESPU-C100NS
Cup size
6oz-16oz
Raw material
Single and double-coated PE paper, PE more than 15g/m2
Paper thickness
160-320gsm
Bottom paper thickness
150-230gsm
Top diameter
60mm-90mm
Bottom diameter
40mm-70mm
Bottom depth
5mm- 8mm
Height
54mm-135mm
Angle
3-8 degree
Capacity
80-120 cups per minute
Main motor power
1.5kw
Total power
16kw
Energy consumption
7-7.5 kw/ hour
air consumption
0.4m3/min, 0.5-0.8Mpa
Weight
2200kg
Dimension
1900x1350x2000mm 1220x950x2080mm
Note: One machine can only change two molds. And the height difference of two molds is less than 50mm.
Electrical parts
NO.
Name
Brand
1
miniature circuit breaker
CHINT
2
AC contactor
CHINT
3
Power Module
Taiwan Mean Well
4
Small Relay
Omron
5
Touch Screen
China
6
Encoder
Schneider
7
Frequency Converter
Eura
8
PLC
China
9
Photoelectric Sensor
Panasonic
10
Approaching Switch
Omron
11
Button
Schneider
12
temperature controller
CHINT
