Quality Control
- 3-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
- Easy inspection and maintenance for parts on forming table.
- All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties

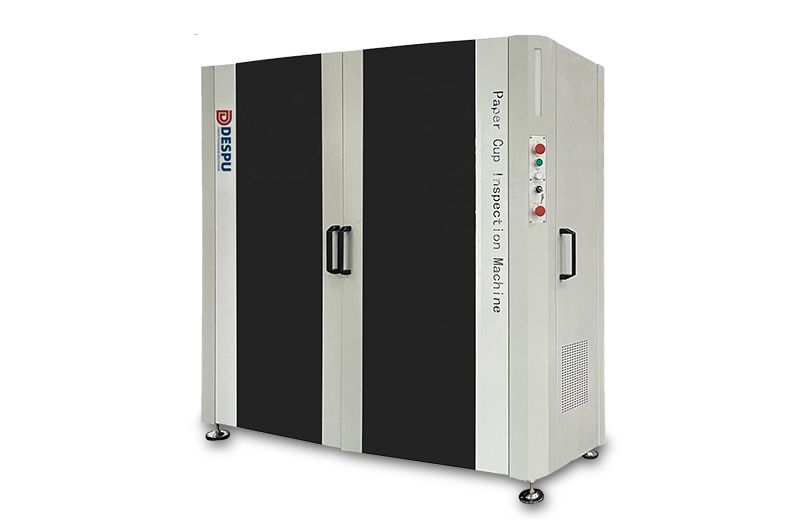

Spiral-type cup discharging structure is newly designed, which facilitates the former cup inspection system and avoids pipe blocking. Meanwhile, absorption ball is also used to change cups’ direction, thus to reduce the damage towards paper cups imposed by machine parts and to improve the production yield rate. Unique camera adjustment device adds more artistic flavor on this machine. It enables the inspection of 300 pcs of paper cups and plastic cups every minute.
Specification
| Model | DESPU-DJ300 |
| Output | 300 pcs/min |
| Paper cup size | (D1)ф60-150mm (H)70-180mm |
| Rated Power | Three-phase，380v，3kw |
| Compressed Air | 0.4-0.6MPa，0.3m³/min |
| Control Panel | 15.6inches |
| Weight | 850kg |
| Packaging Box Size | 1850*1050*1750mm |
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
